6x9" 2-Way Coaxial Car Speaker with Carbon Fiber Cone 90W 4 Ohm

Core Features
1. Carbon Fiber Diaphragm for a Lightweight Driver Structure
The carbon fiber cone provides a lightweight diaphragm construction for the main driver. Combined with the measured moving mass and motor characteristics, this Car Speaker with Carbon Fiber Cone is designed for responsive driver operation in automotive audio applications.

2. High-Power 6x9-Inch Configuration
The larger 6x9-inch driver format provides a substantial diaphragm area for automotive audio systems requiring a higher-power speaker configuration. With a 90W nominal rating and 120W maximum power handling, the 6x9" Coaxial Speaker is suitable for demanding OEM and aftermarket applications.

3. Integrated Two-Way Coaxial Design
The main driver and 1" silk dome tweeter are integrated into a single speaker assembly, providing a practical two-way solution without requiring separate speaker locations for the main driver and tweeter. This makes the 2 Way Coaxial Speaker suitable for space-conscious vehicle audio installations.

4. Balanced Driver and Motor Characteristics
The speaker combines a 25.65g moving mass with a 6.9 N/A BL value, providing defined mechanical and motor characteristics for engineering evaluation and automotive audio system matching.

5. Efficient Acoustic Output
The 88 dB sensitivity and 88.61 dB SPL provide a defined acoustic output characteristic for system selection, helping buyers evaluate the speaker alongside different amplifier and vehicle audio configurations.

Application Scenarios
OEM Automotive Audio – For vehicle manufacturers and automotive audio suppliers developing factory-installed speaker systems.
Aftermarket Car Audio – Suitable for higher-power replacement and audio upgrade programs.
6x9-Inch Vehicle Speaker Replacement – Designed for compatible vehicle applications using a 6x9-inch speaker format.
Automotive Audio System Integration – T/S parameters support engineering evaluation and system matching.
Car Audio Speaker Assemblies – Suitable for integration into vehicle speaker systems requiring a two-way coaxial configuration.
Private Label Speaker Programs – Suitable for car audio brands, distributors, and wholesalers.

OEM / ODM Services
As an in-house speaker manufacturer, we provide OEM and ODM development and production for the 2 Way Coaxial Speaker.
Power and impedance customization
Cone and surround material selection
Tweeter configuration customization
Voice coil and magnet configuration
Crossover specification adjustment
Acoustic and T/S parameter development
Speaker structure and appearance customization
Logo and private-label production
Customized packaging and labeling
Prototype development and bulk production

Services We Provide
Automotive OEMs
We provide speaker development and manufacturing support based on vehicle installation requirements, power targets, electrical specifications, and acoustic system requirements.

Car Audio Brands
We develop customized Coaxial Car Speaker products according to target specifications, materials, appearance, branding, and product positioning.

Distributors and Wholesalers
We provide bulk production and product configuration support for distributors building 6x9-inch and other automotive speaker product lines.

Aftermarket Audio Suppliers
The Car Speaker with Carbon Fiber Cone can be supplied for vehicle replacement and aftermarket upgrade programs requiring higher power handling and a two-way coaxial structure.

FAQ
1. What amplifier power is suitable for the 6x9" 2-Way Coaxial Car Speaker with Carbon Fiber Cone 90W 4 Ohm?
The speaker is rated at 90W nominal power and 120W maximum power. The amplifier should be selected according to the speaker's power handling and the requirements of the complete vehicle audio system.

2. What makes this Car Speaker with Carbon Fiber Cone suitable for higher-power applications?
The larger 6x9-inch format, carbon fiber cone, and higher power rating provide a configuration intended for automotive audio systems requiring greater power handling and a larger driver format.

3. How does the integrated tweeter affect the 2 Way Coaxial Speaker configuration?
The 1" (25mm) silk dome tweeter is integrated with the main driver to form a two-way coaxial assembly, allowing both driver sections to occupy a single speaker position.

4. Can you supply this speaker for bulk automotive audio programs?
Yes. We support bulk orders for automotive OEMs, aftermarket brands, distributors, and other professional buyers. Order quantities and production arrangements can be confirmed according to project requirements.

5. What information is needed to receive a quotation for bulk orders?
Buyers can provide the required quantity, target specifications, application, packaging requirements, and delivery expectations. Our sales team can then confirm the suitable configuration and quotation.

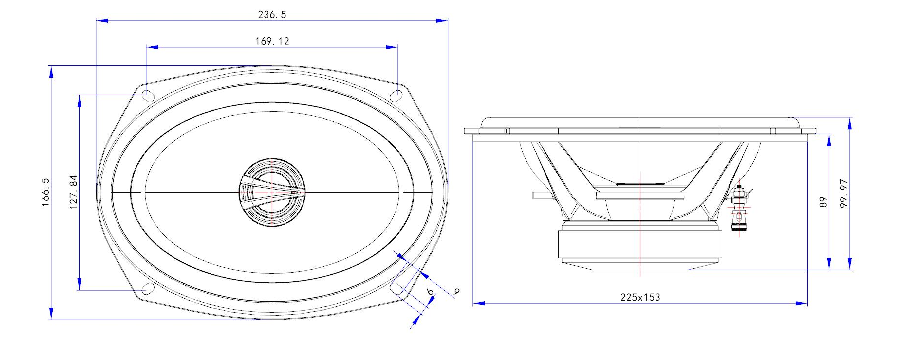

MECHANICAL DRAWING

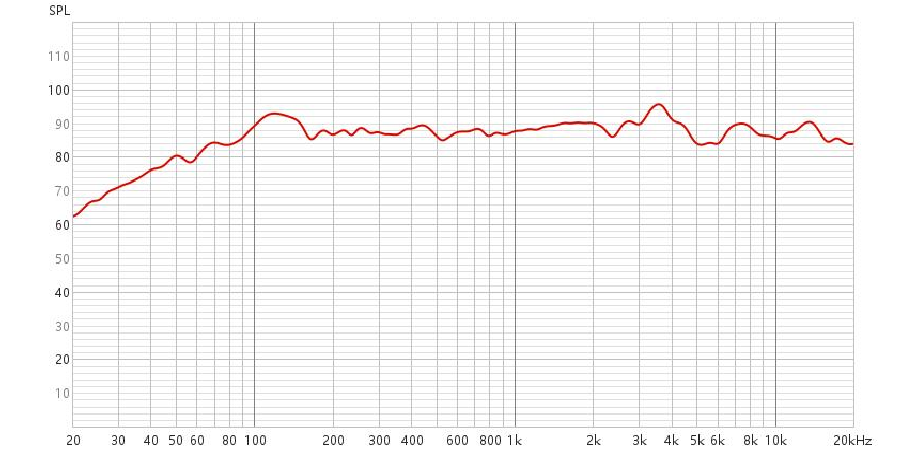

IMP/SPL
