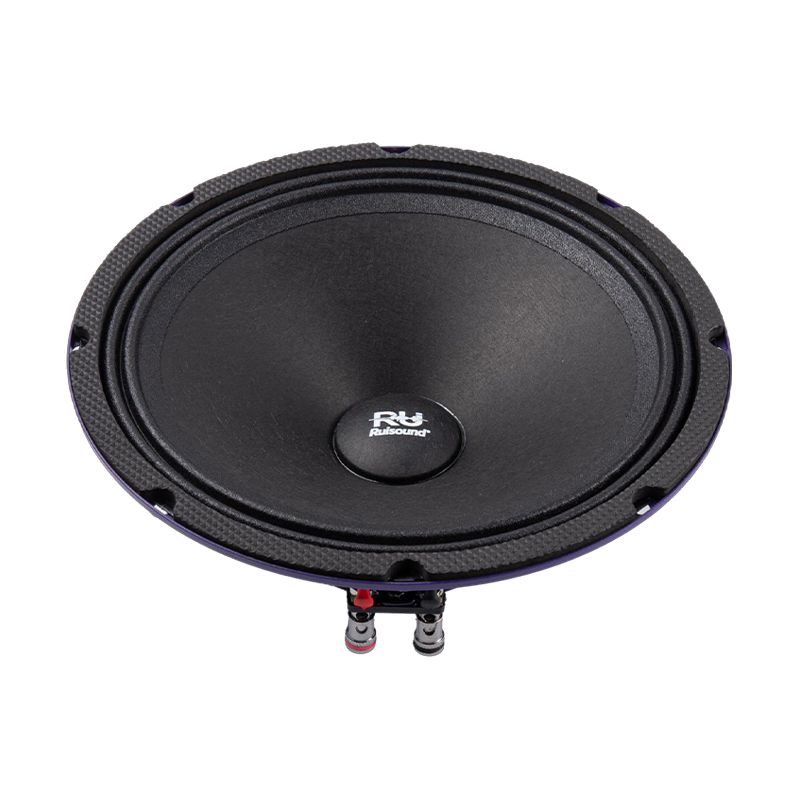

8" Midrange Speaker with Cloth Surround 60W 4 Ohm

Core Features
1. High-Efficiency 97dB Output
The Midrange Speaker with Cloth Surround provides 97dB sensitivity, supporting high acoustic output with relatively efficient amplifier utilization. This makes it suitable for automotive systems where output efficiency is important.

2. 8-Inch Dedicated Midrange Format
The 8" Midrange Speaker combines an 8-inch diaphragm with a 243.3 cm² effective radiating area, providing a substantial driver platform for dedicated midrange applications.

3. 60W Nominal Power Handling
With 60W nominal and 70W maximum power handling, this 60W 4 Ohm Midrange Speaker is designed for automotive audio systems requiring a higher-power midrange driver.

4. Standard 4-Ohm Configuration
The 4-ohm nominal impedance makes the Midrange Speaker with Cloth Surround suitable for integration with compatible automotive amplifiers and multi-driver audio systems.

5. Robust Motor Structure
A 38.6mm two-layer CCAW voice coil, N35 magnet, and BL value of 8 provide a substantial motor configuration for consistent driver operation.

Application Scenarios
Automotive Audio Systems – Used as a dedicated midrange driver in multi-speaker vehicle audio configurations.
Aftermarket Car Audio – Suitable for audio upgrades requiring efficient midrange output.
Professional Car Audio – Provides an 8-inch driver platform for higher-output automotive sound systems.
Multi-Driver Speaker Systems – Can be integrated with tweeters, woofers, or subwoofers according to system requirements.
Custom Vehicle Audio – Suitable for customized speaker assemblies and automotive audio development.
Private Label Speaker Products – Available for distributors and car audio brands developing customized product lines.

OEM / ODM Services
As a factory-direct speaker manufacturer, we provide OEM and ODM support for customized Midrange Loudspeaker programs:
Customized power and impedance
Cone and surround material options
Voice coil and magnet configurations
Acoustic parameter optimization
Driver appearance and branding
Logo and label customization
Customized packaging
Prototype development
Bulk production support

Services We Provide
Automotive OEM Suppliers
We provide customized Midrange Loudspeaker solutions for vehicle manufacturers and automotive component suppliers requiring consistent production and specification control.

Car Audio Brands
We support private-label programs with customized driver configurations, appearance, branding, packaging, and production requirements.

Distributors & Wholesalers
We supply the 8" Midrange Speaker for aftermarket distribution and standardized product portfolios, with support for bulk purchasing.

Aftermarket Audio Suppliers
The Midrange Speaker with Cloth Surround can be supplied for vehicle replacement, audio upgrades, and customized automotive audio applications.

FAQ
1. What amplifier power is suitable for the 8" Midrange Speaker with Cloth Surround 60W 4 Ohm?
Amplifier matching should consider the 60W nominal power rating, system configuration, and required operating headroom. We can recommend suitable amplifier matching based on the customer's complete audio system.

2. How does the 97dB sensitivity benefit this 60W 4 Ohm Midrange Speaker?
The 97dB sensitivity supports efficient acoustic output, allowing the driver to deliver a strong output level with comparatively efficient amplifier utilization.

3. What is the advantage of the 38.6mm voice coil and N35 magnet?
The 38.6mm two-layer CCAW voice coil and N35 magnet form a robust motor structure, with a BL value of 8 providing useful engineering information for driver performance evaluation.

4. Can you supply the 8" Midrange Speaker for bulk automotive audio programs?
Yes. We provide factory-direct bulk production for automotive OEM suppliers, car audio brands, distributors, wholesalers, aftermarket suppliers, and system integrators.

5. What information should buyers provide for a customized quotation?
Buyers can provide the required quantity, target specifications, customization requirements, packaging needs, and intended application. We can then evaluate the project and provide a suitable quotation.

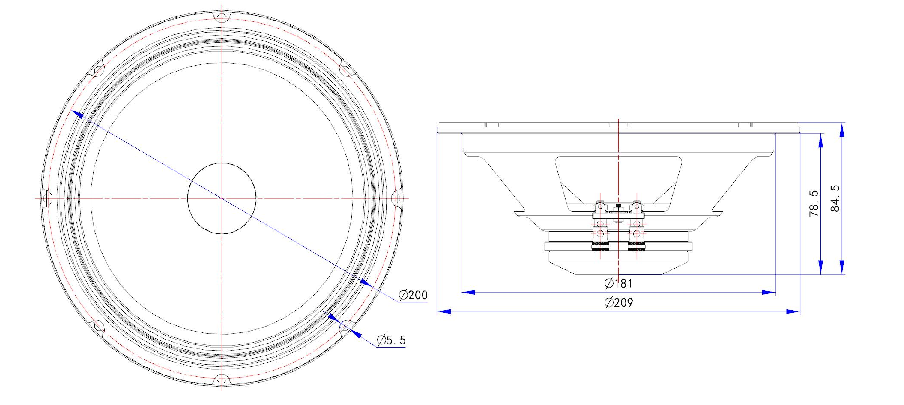

MECHANICAL DRAWING

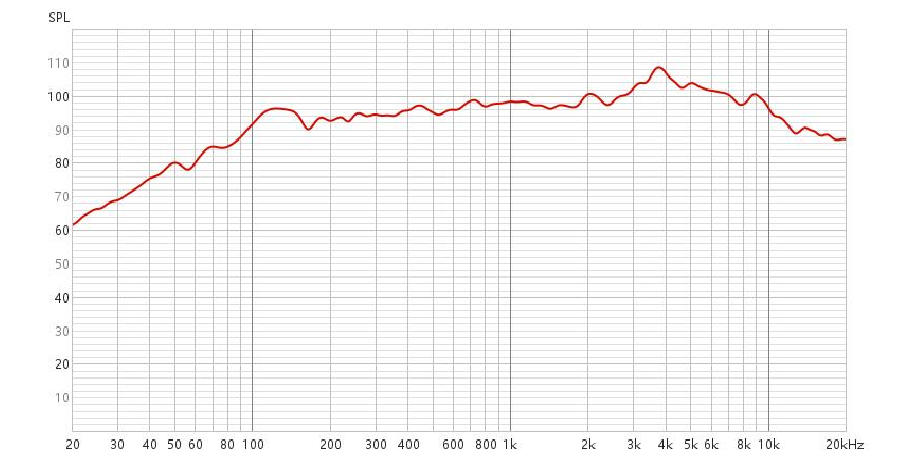

IMP/SPL

Founded in 2025, Ruisound operates a 4,000㎡ manufacturing base in Jiashan, Zhejiang. The company focuses on the research, development, production and sales of electroacoustic products, with product lines covering car speakers, midrange loudspeakers, subwoofers, marine speakers, professional loudspeakers and amplifiers.

Ruisound is built to serve global audio brands, distributors and OEM project customers who need reliable speaker products, flexible customization and stable manufacturing support.
